10 1/4" g Hunslet

10 1/4" g Hunslet

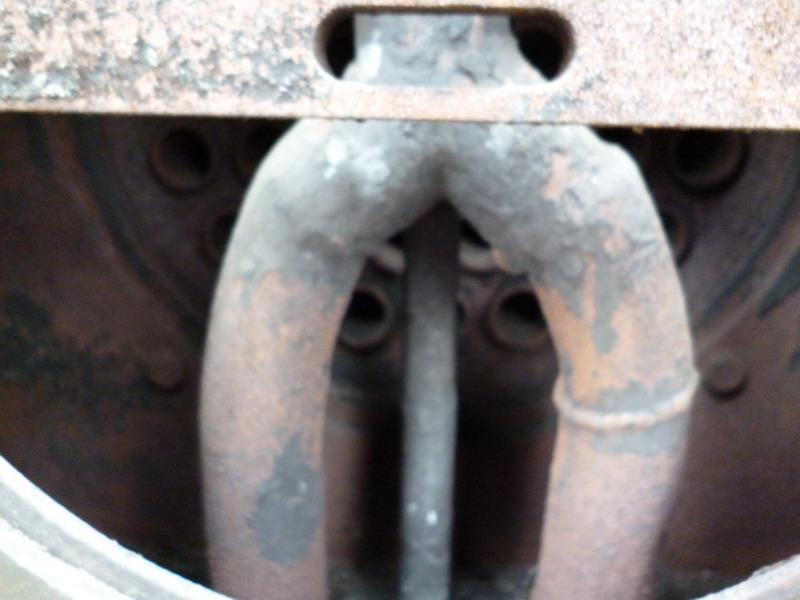

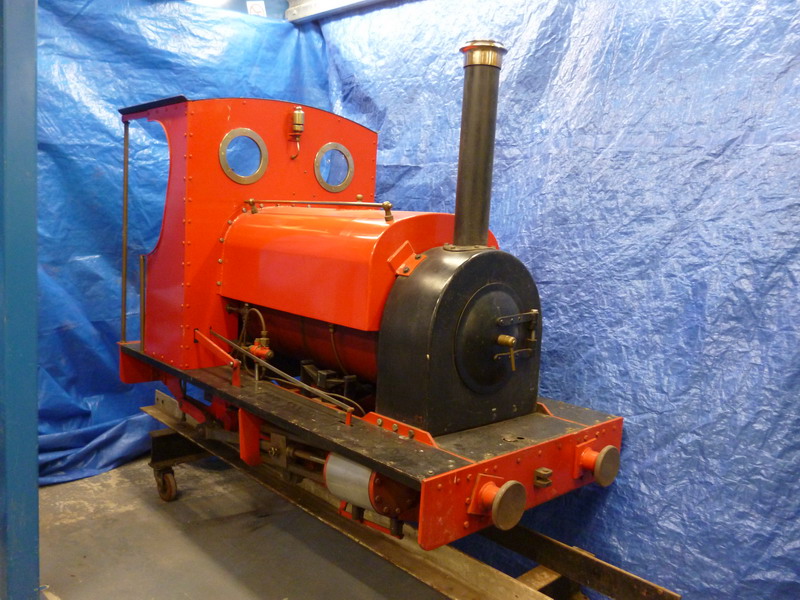

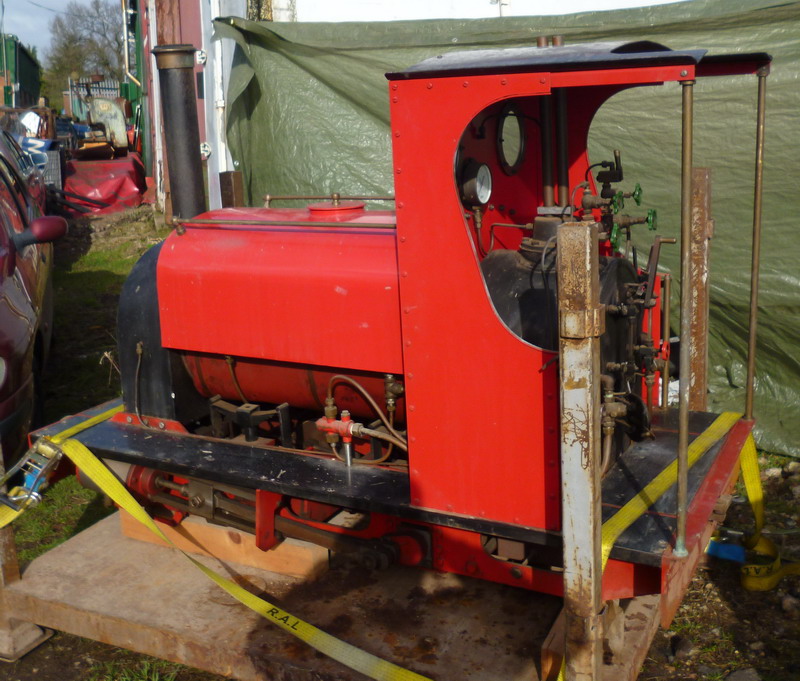

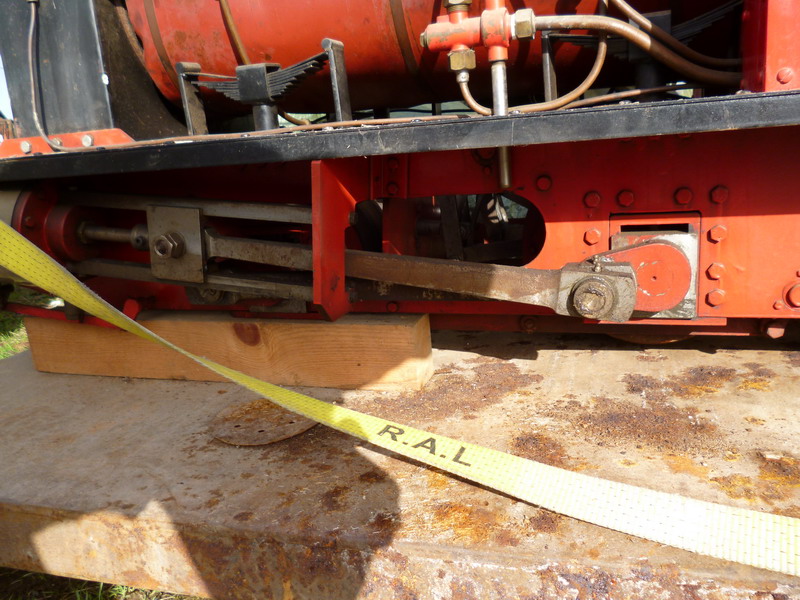

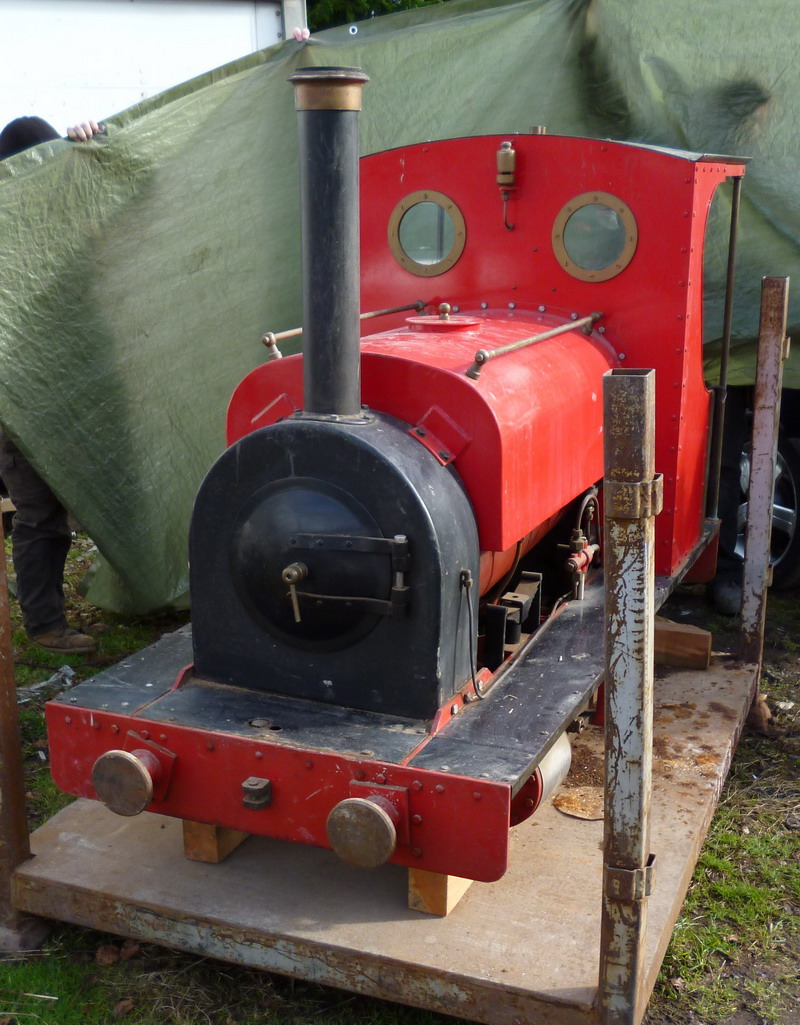

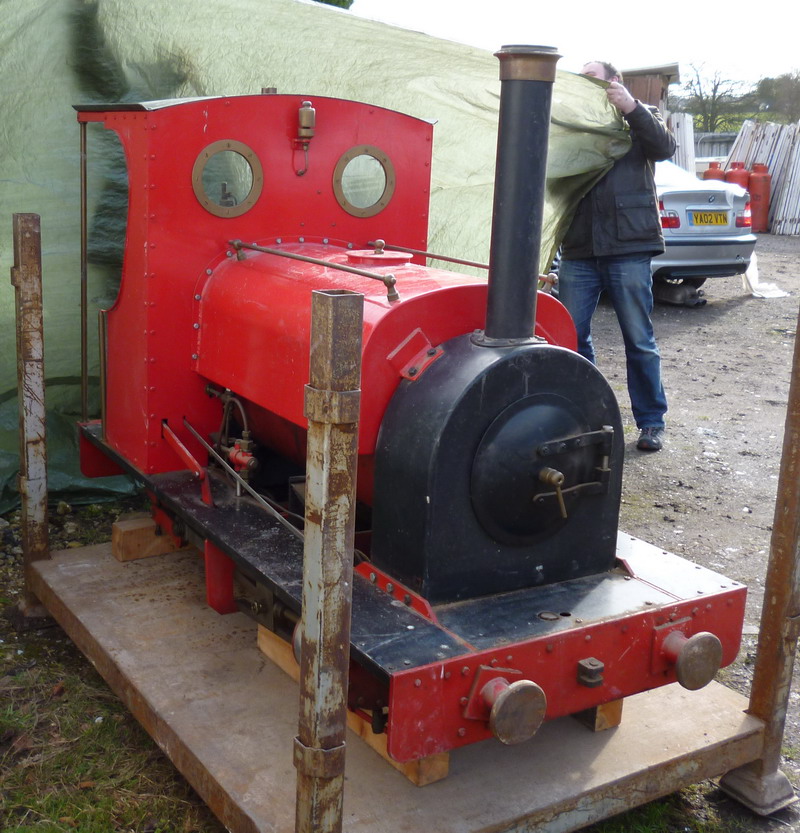

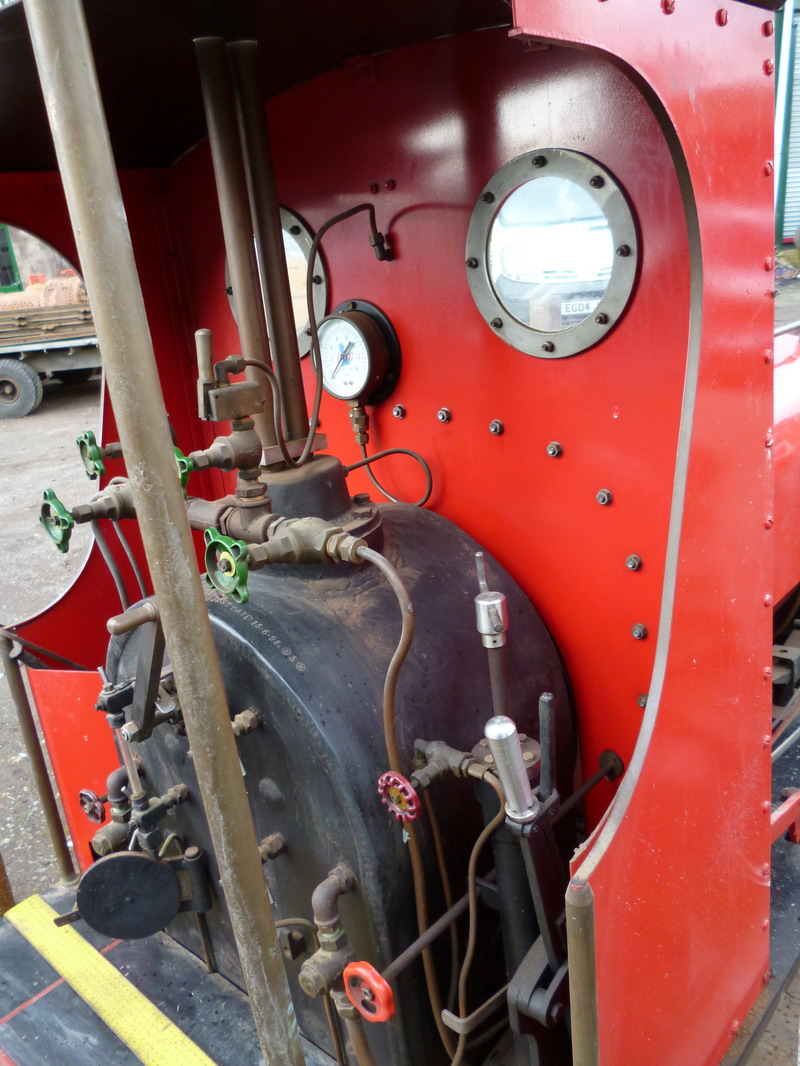

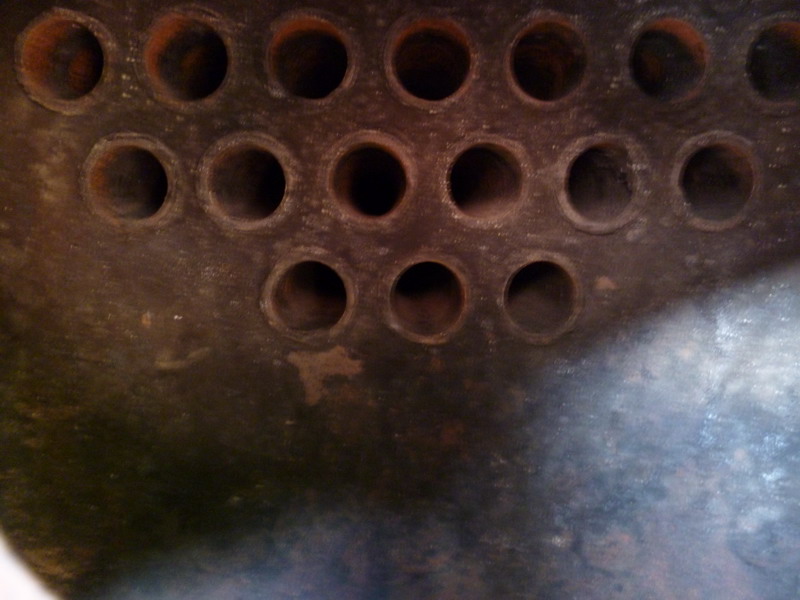

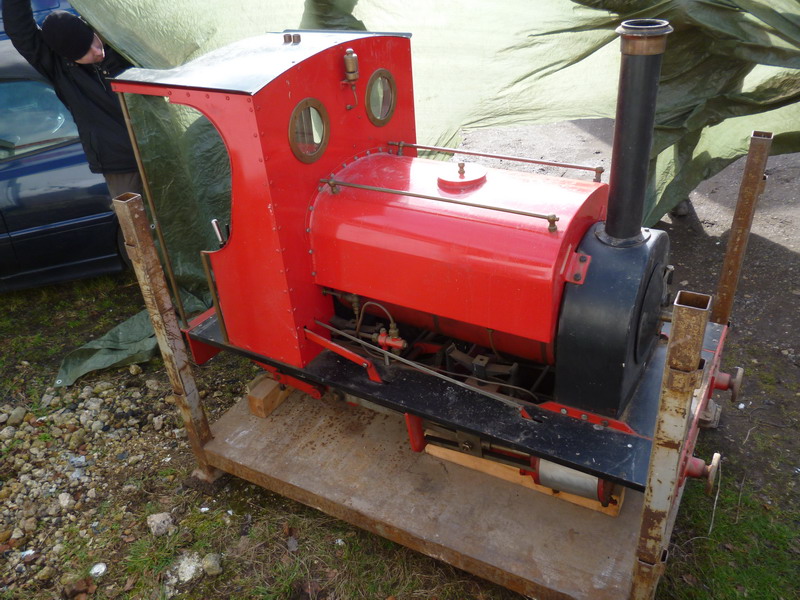

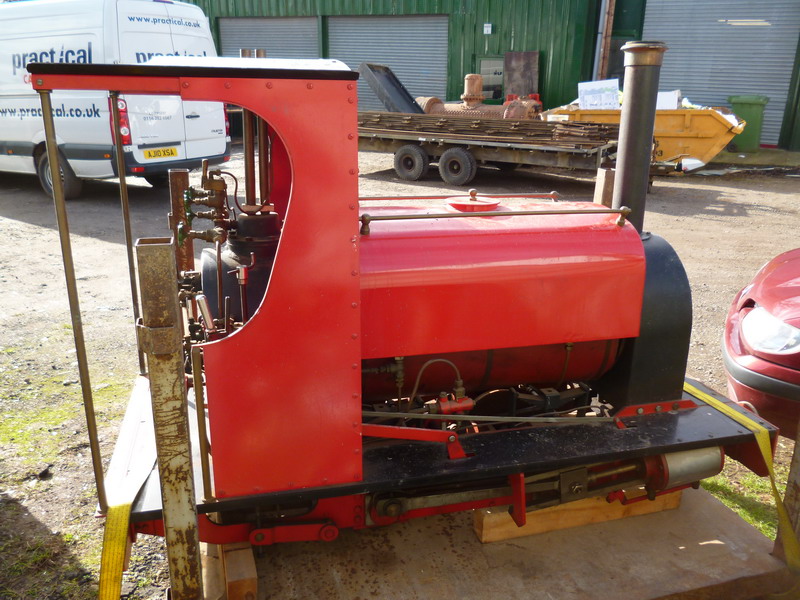

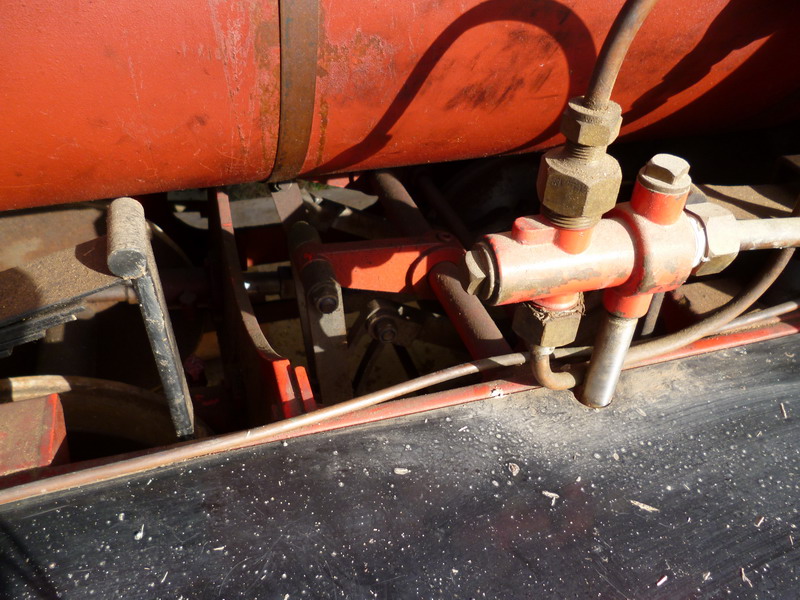

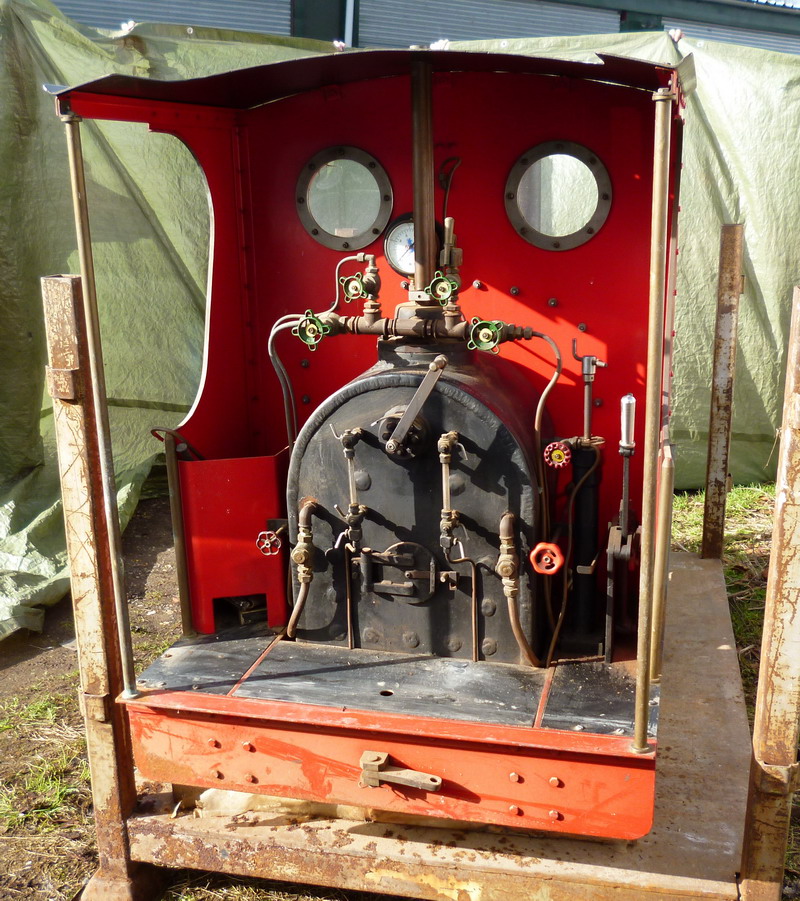

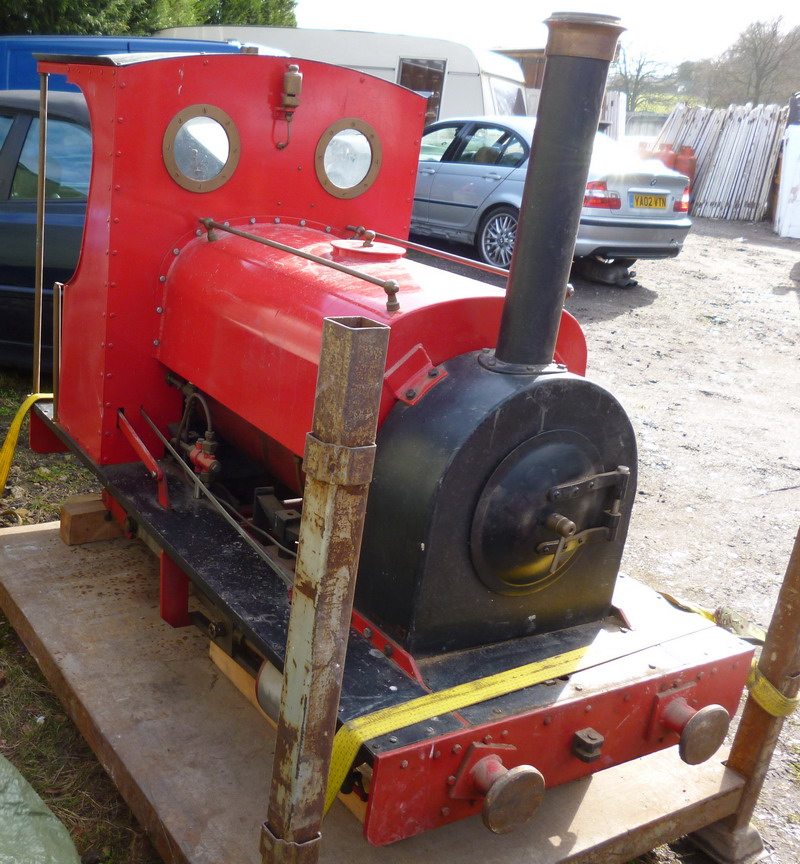

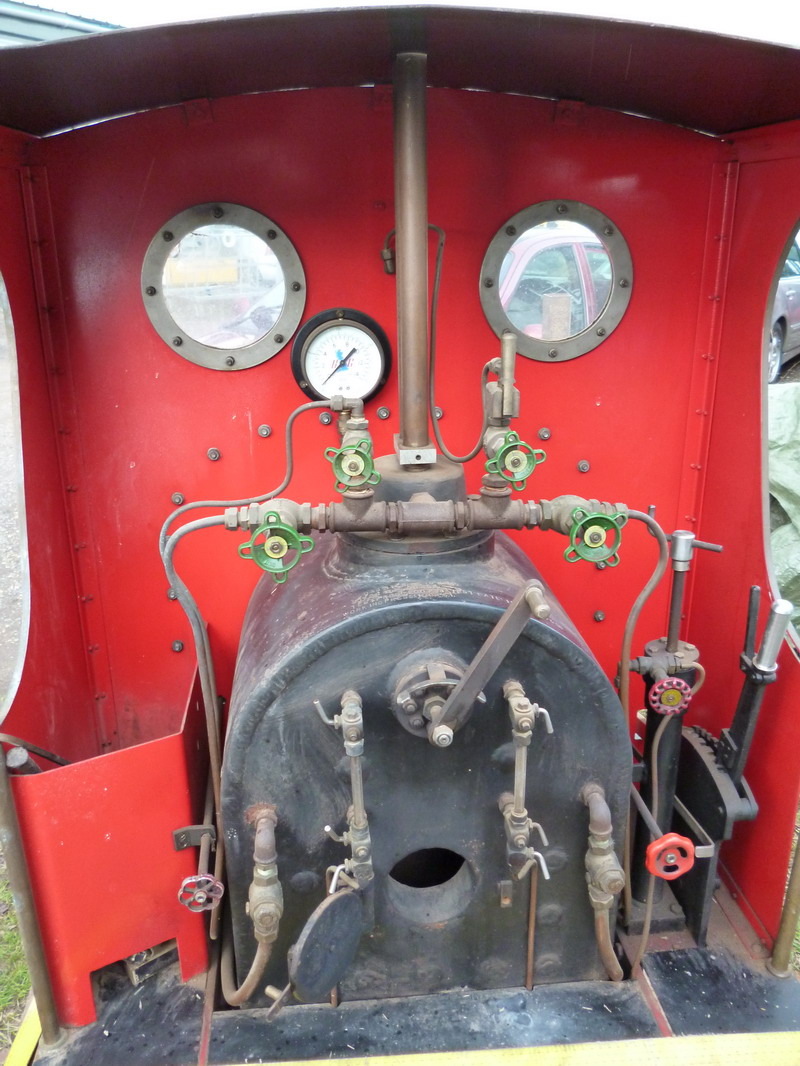

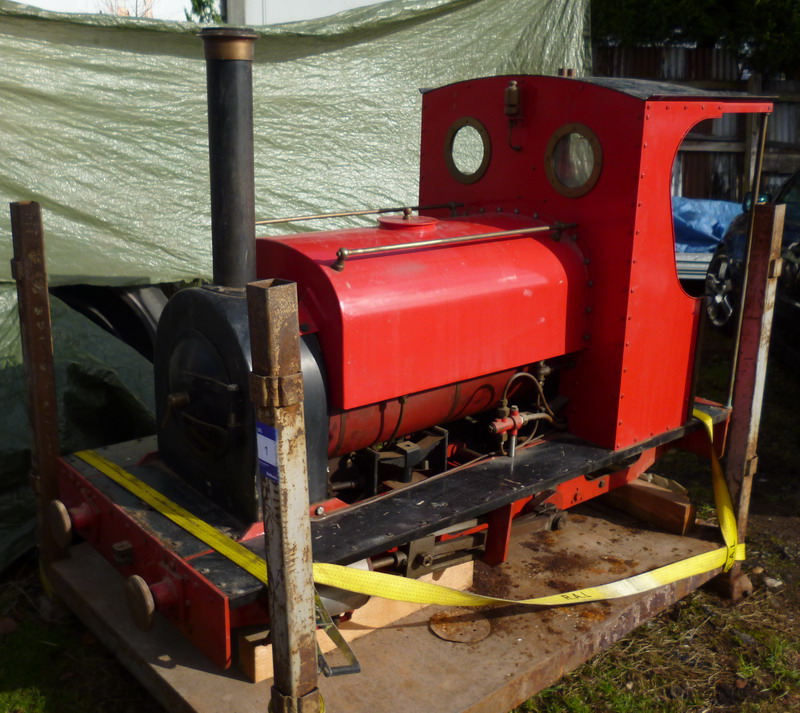

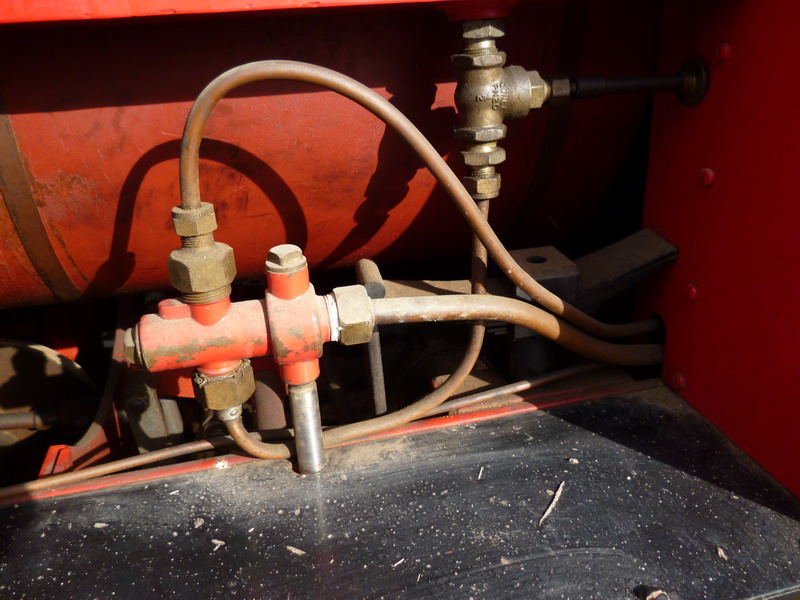

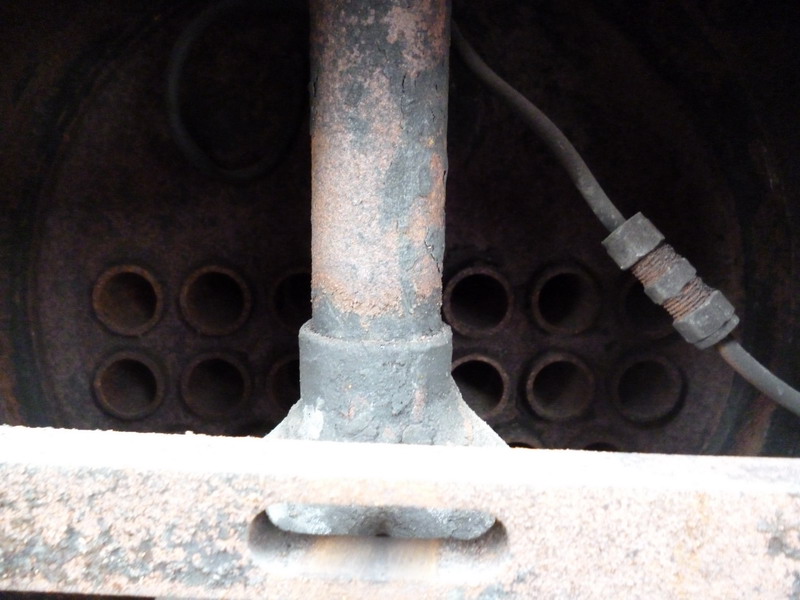

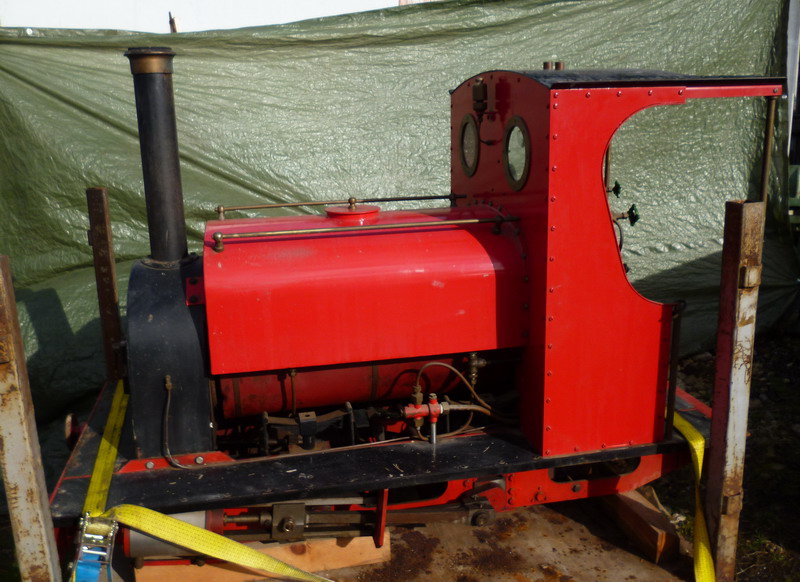

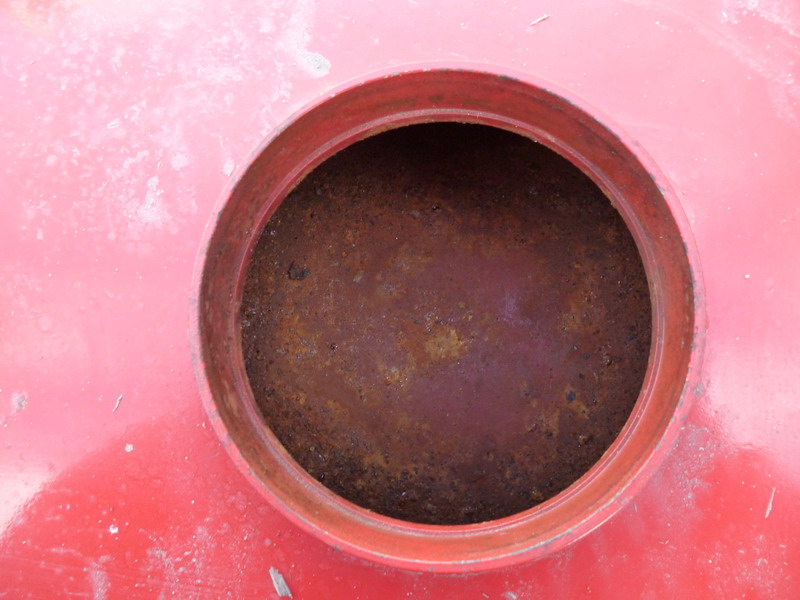

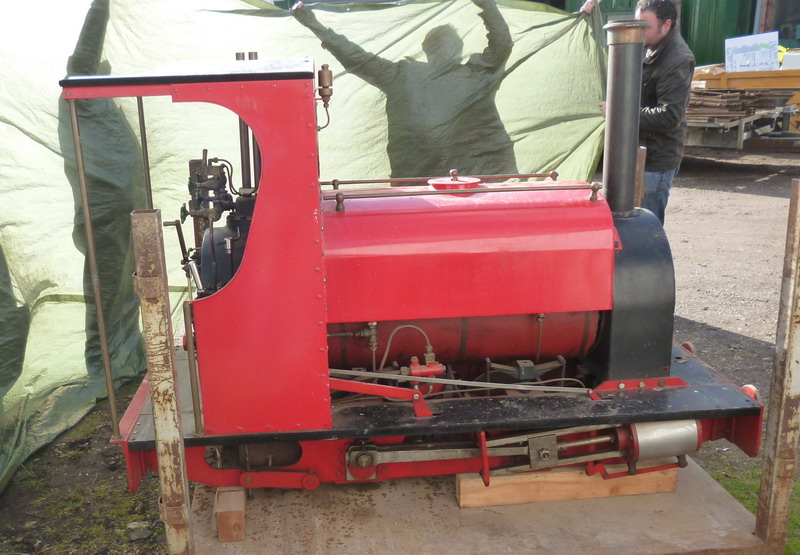

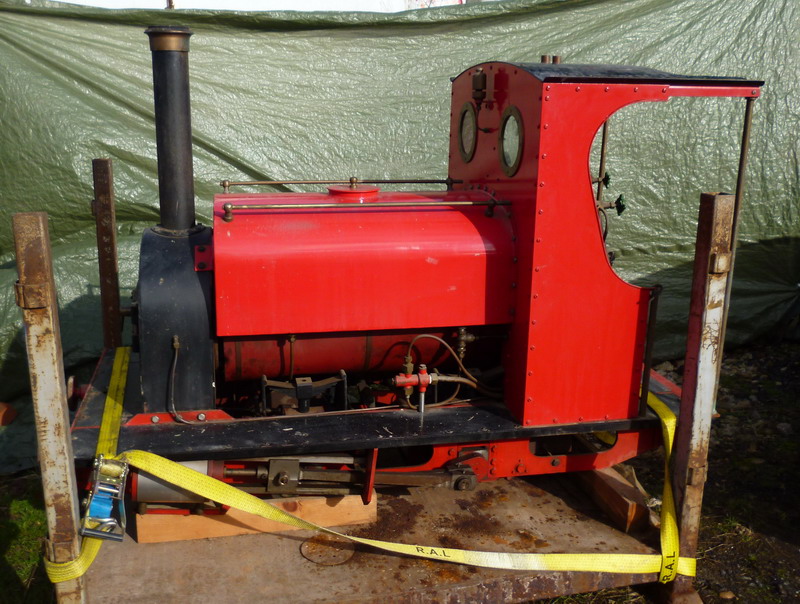

The locomotive as new in about 1998, ran for a couple of years and has been in storage since then. Width over footplate 35" Height over cab roof 53" Height over Chimney 57" Length over buffer planks 74" plus (front only) buffers 3 1/2" Fitted 2 injectors, 2 off 3 cock water gauge frames, screw hand brake Wheel Base 20 1/4"Wheel Dia on Tread 10"Cylinder bore 3 1/2"Cylinder stroke 4 1/2" Boiler. Welded Steel stamped D and S Steam tested 200psi, working pressure 100psi - tested 15/6/1998 BI Overall length front tube plate to back head 48"Barrel 13" OD x 35" long Firebox outer wrapper 18" wide, 13" front to back, 24" high Inner Fire box is 14 1/2" high x 12 1/2" wide by 8" front to back Tubes 23 off 1 5/16" OD thick steel. Currently without boiler certificate but this is not expected to be an issue. All dimensions approximate.The saddle tank feeds 2 off injectors directly, feed from a tender tank is not required.There is no driving truck/tender available.This locomotive could be regauge to 12" or 12 1/4" gauge, plenty of room between the frames and the wheels.Safety valves need to be replaced, new gauge frame fittings and some backhead pipework plus screwed fittings also need changing. We offer at £28,500 including VAT with a boiler certificate, new safety valves, boiler fittings boiler fittings changed etc Or £ 24,500 including VAT in as is condition without a boiler certificate. weight 750kg approx
